Gripping System - 360x190 mm suction pad - Air drawn 1440 Nl/mn
ref. : CSGS4X25X60
characteristics
Tensile force (Ft) 600N
dimension (D) 360x190mm
Air drawn in (aa) 1440Nl/min
Maximum vacuum (mv%) 84%

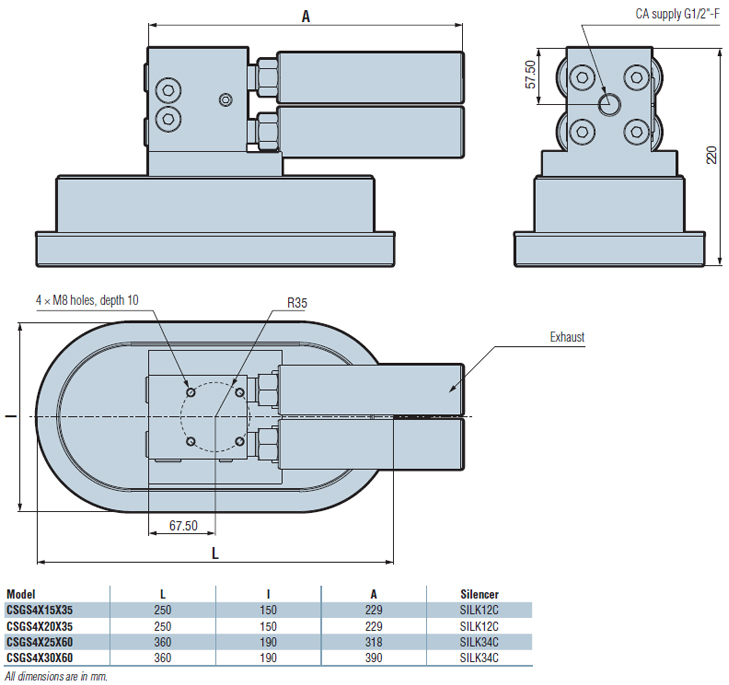

Dimensions
3D Model

To generate the 3D file in the required format, we use the TRACEPARTS platform. To download the file, please use your TRACEPARTS username and password.
