VACUOGRIP VGR - 90° tilting vacuum lifting devices

Handling loads from 100 to 500 kg

Vacuum handling device: 90° tilting vacuum lifting devices for sheets or panels, VACUOGRIP COVAL, series VGR

The VACUOGRIP VGR line of vacuum lifting devices is COVAL’s standard product addressing such needs as handling and 90° tilting of smooth and non-porous loads by a single user.

They are easy to use and stand out due to their reliability and all-round ruggedness.

VGR VACUOGRIP vacuum lifting devices are speciﬁcally designed for the following applications:

■ Palletizing and depalletizing

■ Feeding machinery

■ Unloading conveyors

The ideal solution for handling sheet metal without deformation or marks.

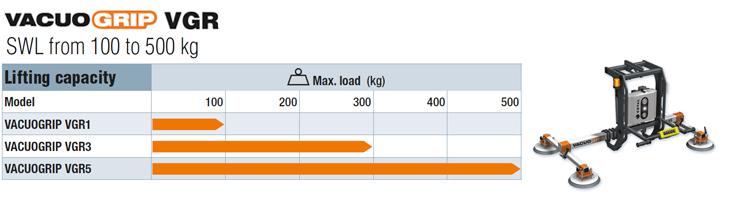

Lifting capacity

90° tilting vacuum lifting devices, VGR Series

Handling of sheets or panels and 90° pivoting from 100 to 500 kg. Vacuum lifting devices COVAL, VACUOGRIP, VGR Series

Safety

The VACUOGRIP, VGR series line includes the following safety features:
■ Vacuum tank in main beam
■ Check valve
■ Vacuum gauge with red/green operating ranges, pointer indicates the vacuum level in suction cups
■ Warning Alarm in case of power cut or drop of vacuum level
■ Power on indicator
■ 2 red “Release” buttons that force the user to use both hands
According to your applications and needs, additional features can be selected from the Option Packs.

COVAL vacuum lifting devices comply with the EU Machinery 2006/42/EC and Low voltage 2014/35/EU directives as well as with European standard EN 13155.

THE VACUOGRIP VGR IN DETAIL

Packs are available to configure your VACUOGRIP

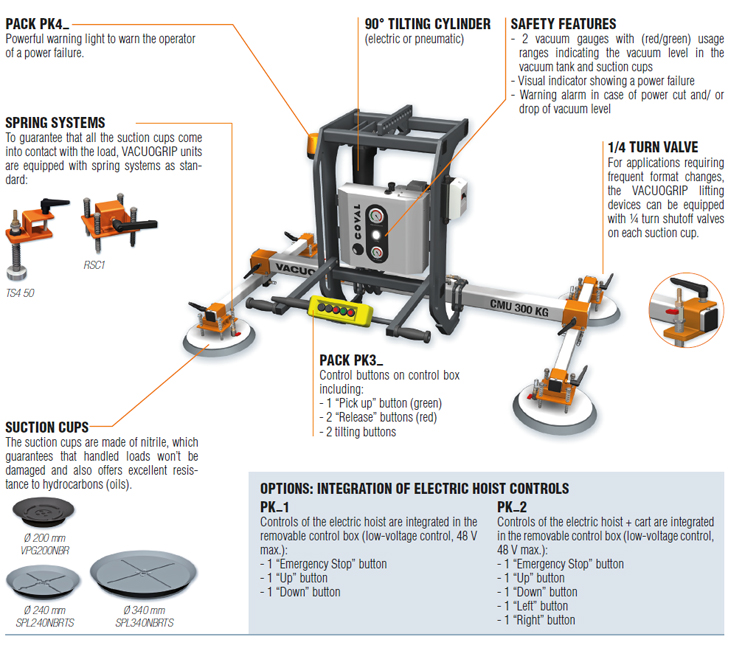

representation of a COVAL, VACUOGRIP series VGR 90° rotating vacuum lifting device, with details of ergonomic and safety options

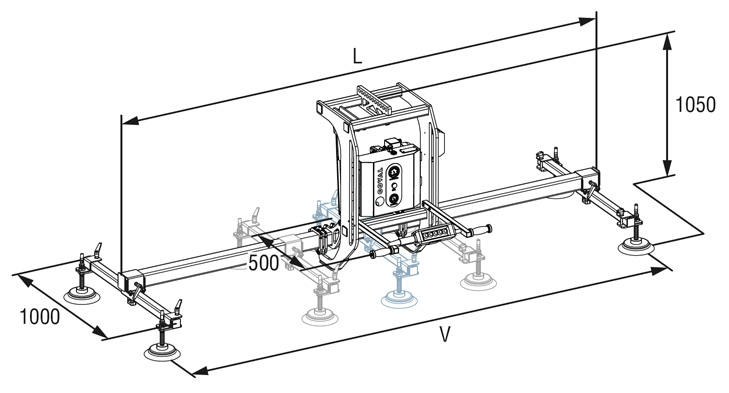

Schema VACUOGRIP VGR

Overall dimensions of a vacuum lifting device COVAL, VACUOGRIP series VGR, for vacuum handling and 90° pivoting of loads from 100 to 500 kg - sheet metal - panels.

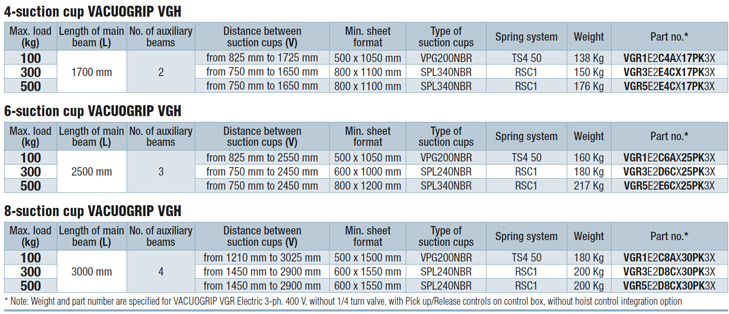

Dimensions and part numbers of standard VACUOGRIP VGR

find references and dimensions of COVAL, VACUOGRIP series VGR vacuum lifting devices with 90° swivelling cups

VACUOGRIP Documentation

download the document
