CVGC Carbon Vacuum Gripper Series

Versatility that doesn't compromise !

CVGC Carbon Vacuum Gripper Series

CVGC Carbon Vacuum Gripper Series

More than a simple update, COVAL has redesigned the CVGC carbon vacuum gripper based on feedback from customers, integrators, manufacturers, and operators. This new generation also takes into account current and future trends in the collaborative robot market: greater application diversity, growth in the number of manufacturers, increased co-presence with operators, and handling of heavier loads.

Discover the CVGC Carbon Vacuum Gripper Series

Advantages:

Ultra-light and compact: thanks to its carbon design
Compatibility: fits a wide range of collaborative robots
Modularity: 3 standard sizes (240x120 mm, 320x160 mm, 350x250 mm)
Configurability: 2 interfaces - suction cups or foam
• Versions with or without an integrated vacuum generator

COVAL has developed a CVGC which, thanks to its multiple configuration possibilities, is highly versatile.

CVGC___M2_ Version with Vacuum Generator

The CVGC carbon vacuum gripper M2 version with integrated vacuum generator, is a plug-and-play solution specifically designed to perfectly adapt to all models of collaborative robots. Ultra-compact, these grippers integrate all the necessary functions under a protective cover for optimal use.




CVGC___GO_ Version Without Vacuum Generator

The CVGC carbon vacuum grippers may also be used with an independent vacuum generator. The CVGC carbon vacuum gripper GO version are equipped with a VRU series vacuum rotary union, ensuring vacuum supply to the gripper via an external source.

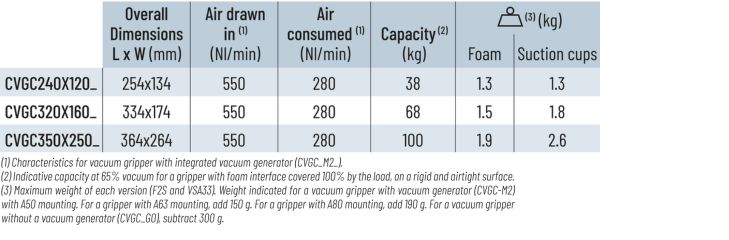

Characteristics:

Each customer can configure “their” carbon vacuum gripper to suit their precise needs. The CVGC is available in 3 sizes (240x120 mm, 320x160 mm, 350x250 mm), 2 types of gripping interface (foam or suction cups) and with or without an integrated vacuum generator.



"FOAM" Interface

Handling of rigid products.
Gripping textured or uneven surfaces.
Flow control nozzles.
2 standard hole diameters (Ø12 mm and oblong 27x12 mm).



"SUCTION CUP" Interface

Handling of flexible products.
Wide range of cup options.
Flow control nozzles in multiple diameters.
2 types of standard suction cups (Ø25 and Ø33 mm).

The CVGC is available with a choice of 3 mounting options and 6 connecting cables. This makes it perfectly compatible with all major brands of cobots.

With its ultra-light vacuum gripper, COVAL can transform any collaborative robot into a tool for increasing productivity and workplace health in a wide range of industries: food processing, packaging, plastics processing, etc. On request, COVAL’s design team is also available to develop customized vacuum grippers.


The CVGC constitutes a versatile tool available to all manufacturers, integrators, and users of cobots for palletizing, gripping boxes or plastic parts, and a wide variety of other applications.


To learn more about the CVGC Carbon Vacuum Gripper, download the brochure at the link below:
