VACUO-B VBR - 90° TILTING VACUUM LIFTING DEVICES

Handling loads from 80 to 250 kg

The VACUO-B VBR line of vacuum lifting devices is COVAL’s standard product addressing such needs as handling and 90° swivelling of porous panels by one single operator. They are easy to use and stand out due to their reliability and all-round ruggedness. VBR VACUO-B vacuum lifting devices are specifically designed for the following applications:

■ Palletizing and depalletizing
■ Feeding machinery
■ Unloading conveyors

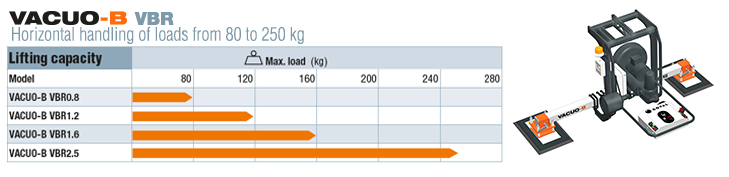

Lifting capacity

90° rotating vacuum lifting devices, VBR serie

Security

The VACUO-B line includes the following safety features:
■ Flywheel blower allowing in case of power failure to maintain the vacuum in the suction cups , the time that the operator secures the station.
■ Electronic colour display type vacuum switch indicating the vacuum level in suction cups
■ Warning Alarm in case of power cut or drop of vacuum level
■ Power on indicator
■ 2 red "Release" buttons that force the user to use both hands
According to your applications and needs, additional features can be selected from the Option Packs.

COVAL vacuum lifting devices comply with the EU Machinery 2006/42/EC and Low voltage 2014/35/EU directives as well as with European standard EN 13155.

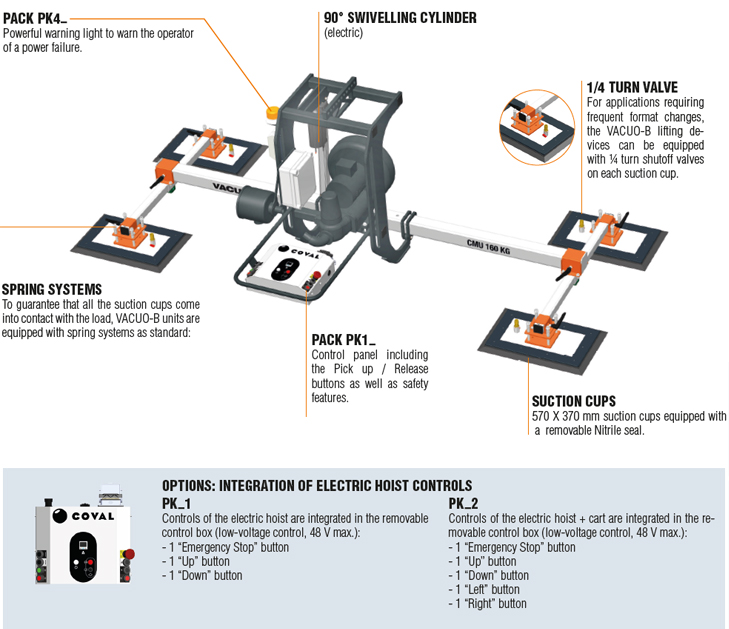

VGR VACUO-B in details

Packs are available to configure your VACUO-B

VGR VACUO-B Schema

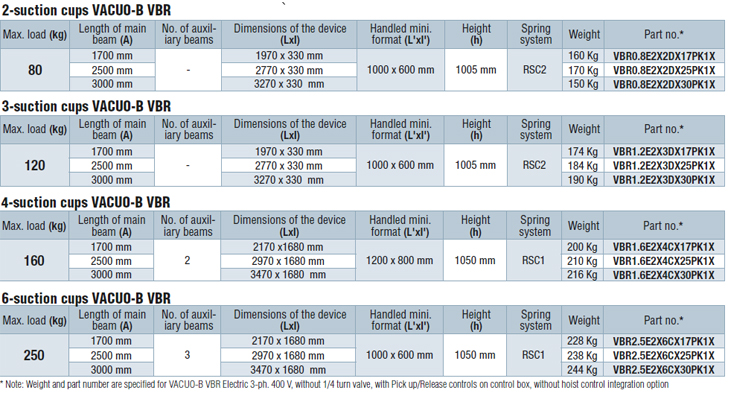

STANDARD VACUO-B VBR DIMENSIONS AND PART NUMBERS
