Horizontal vacuum lifting devices

Horizontal handling of loads from 100 to 320 kg

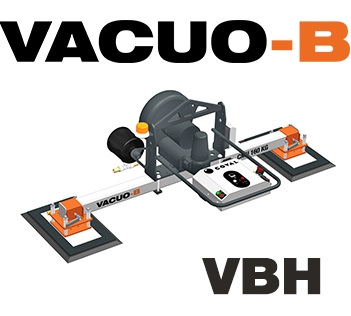

Horizontal vacuum lifting devices
The VACUO-B VBH line of vacuum lifting devices is COVAL's standard product addressing such
needs as handling horizontal handling of porous panels by one single operator.
They are easy to use and stand out due to their reliability and all-round ruggedness.
VBH VACUO-B vacuum lifting devices are specifically designed for the following applications:
 Palletizing and depalletizing
 Feeding machinery
 Unloading conveyors

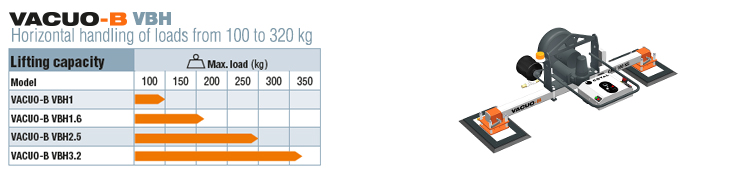

Lifting capacity

Horizontal vacuum lifting devices, VBH serie

Lifting capacity

Security

Security

The VACUO-B line includes the following safety features:
■ Flywheel blower allowing in case of power failure to maintain the vacuum in the suction cups , the time that the operator secures the station.
■ Electronic colour display type vacuum switch indicating the vacuum level in suction cups
■ Warning Alarm in case of power cut or drop of vacuum level
■ Power on indicator
■ 2 red "Release" buttons that force the user to use both hands
According to your applications and needs, additional features can be selected from the Option Packs.

COVAL vacuum lifting devices comply with the EU Machinery 2006/42/EC and Low voltage 2014/35/EU directives as well as with European standard EN 13155.

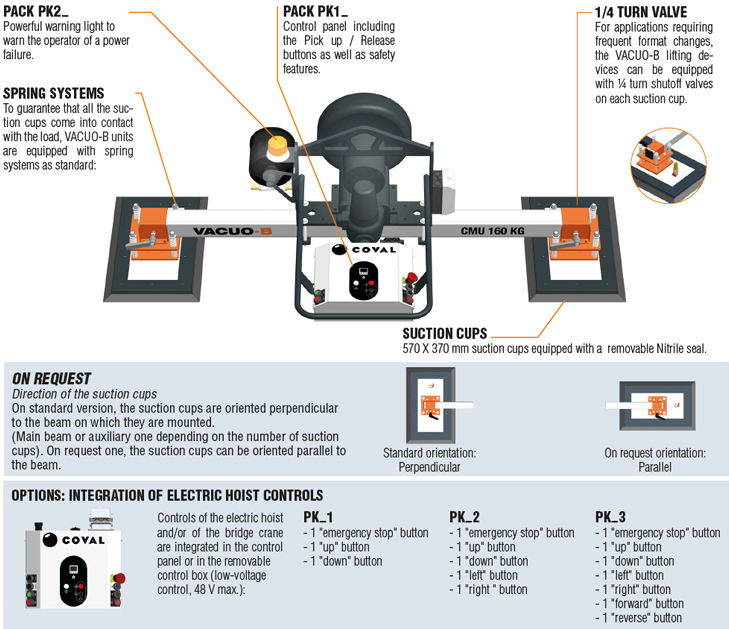

THE VACUO-B VBH IN DETAIL

Packs are available to configure your VACUO-B

THE VACUO-B VBH IN DETAIL

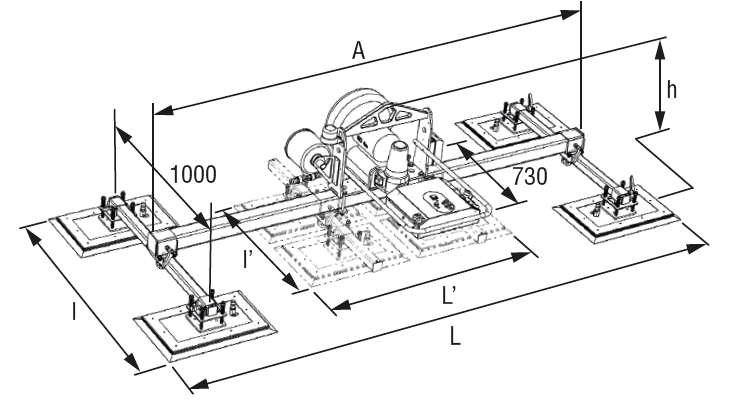

SCHEMA VACUO-B VGH

SCHEMA VACUO-B VGH

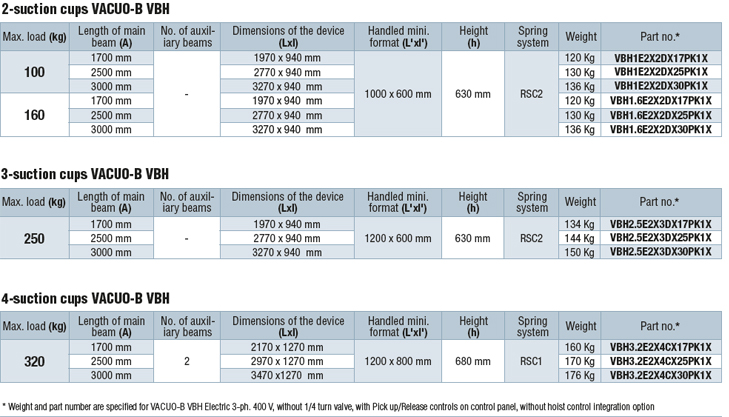

STANDARD VACUO-B VBH DIMENSIONS AND PART NUMBERS

STANDARD VACUO-B VBH DIMENSIONS AND PART NUMBERS
